Key Engineering Takeaways
- Variable Frequency Drive (VFD) senses flow rate 1,000 times per second and modulates motor RPM instantaneously.
- Maintains exact constant water pressure regardless of whether 1 tap or 6 rain showers are operating simultaneously.
- Brushless permanent-magnet DC motor (BLDC) operates under 45 dB(A) — quieter than a library whisper.
- Replaces unsightly, high-maintenance diaphragm pressure tanks that rupture and cause water hammer.
The Agony of the Shower Pressure Drop
Have you ever stepped into a luxury rain shower only to have the flow sputter when someone turns on a kitchen tap downstairs? Or heard a loud "THUMP" through your bedroom wall whenever a flush tank refills?
These annoyances stem from traditional fixed-speed pressure pumps paired with mechanical bladder tanks. Conventional pumps run only at 100% full speed or 0% off. When pressure drops below a threshold, the motor violently kicks in at maximum RPM, spiking pressure until the cutoff switch trips.
The MKAWA Japanese VFD Advantage
MKAWA Japan pioneers permanent-magnet brushless VFD booster pumps (SCA and WHBL series). Rather than banging on and off, the microchip brain detects the exact water demand in milliseconds:
- If you open just one hand spray at 4 L/min, the motor softly spins at 1,200 RPM, using barely 40 Watts of power.
- If you open three rain showers, two body jets, and a kitchen tap (45 L/min), the motor smoothly accelerates to 3,800 RPM to sustain an unyielding 3.5 bar pressure.
Water-Cooled Whisper Engineering
Standard pumps use noisy external air-cooling fans that whine during the night. MKAWA pumps route the pumped water directly around the motor casing before delivery. This accomplishes two things: completely silent water-jacketed soundproofing (<45 dB) and zero overheating even during scorching 48°C Ahmedabad summers.

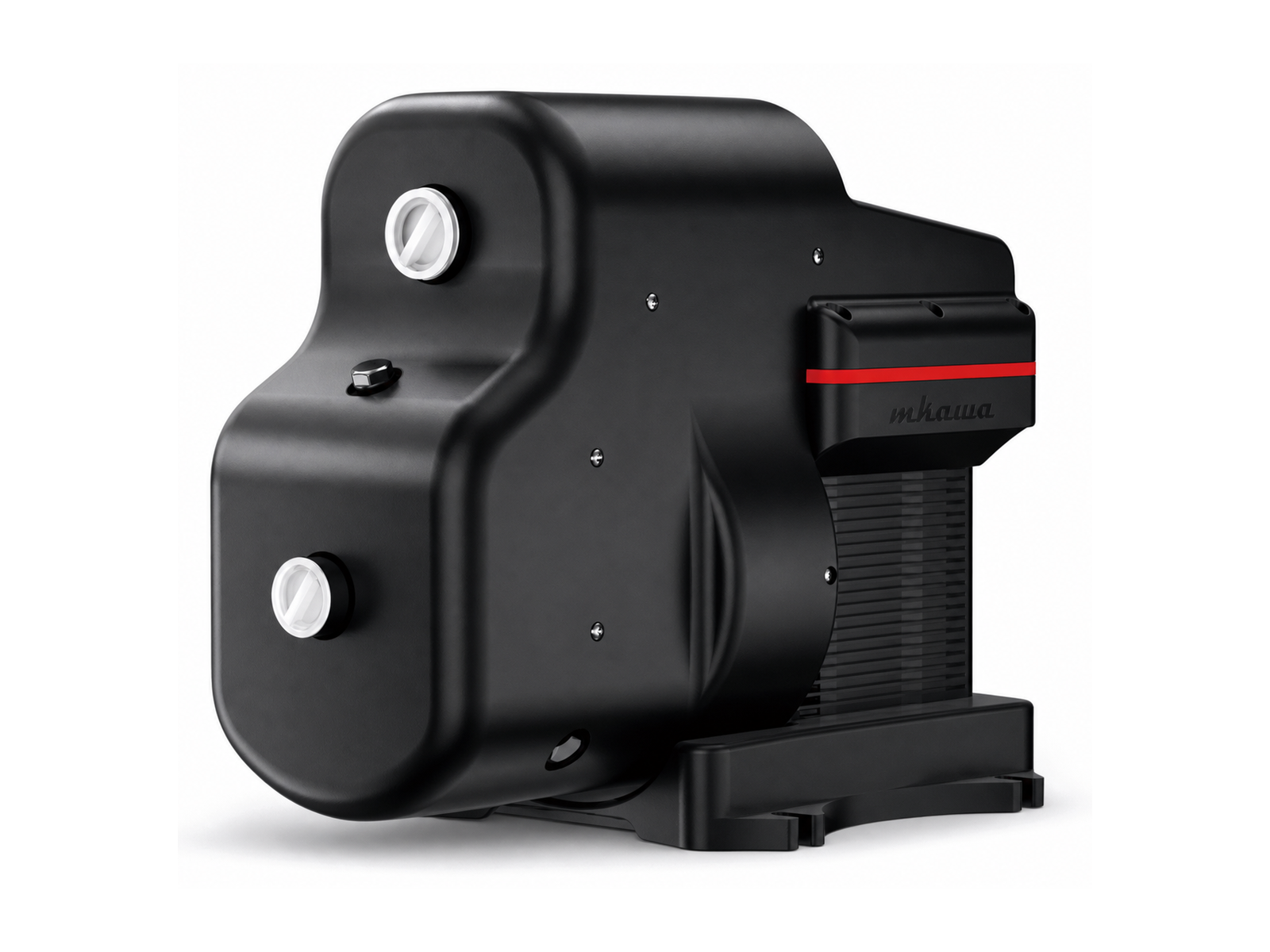

MKAWA SCA604 Permanent Magnet VFD Booster
Intelligent variable-speed booster with ultra-quiet <45dB motor and constant 3.5 bar pressure delivery.
Jal Tatva Water Engineering Cell
Authoritative technical publication based on real-world test data and official engineering specifications from MKAWA Japan. Consult with our specialists for turnkey project design.
